BlueStorm
Advanced BLE/Bluetooth Security Research Tool
Key Features
Multi-Mode Operation
Supports BLE, Classic Bluetooth, and Combined modes for comprehensive testing.
Efficient PCB Design
Compact and optimized PCB layout for maximum performance.
Intelligent LED Indicator
Color-coded LED status for easy mode identification.
Advanced Power Management
Optimized power consumption for extended operation.
PCB Specifications
Layer Stack
- 4-layer PCB design
- • Top Layer (Signal)
- • Inner Layer 1 (Power)
- • Inner Layer 2 (Ground)
- • Bottom Layer (Signal)
Board Dimensions
50mm x 30mm x 1.6mm
Special Features
- • Impedance controlled traces for high-speed signals
- • Thermal relief pads for easier soldering and rework
- • Copper pour on all layers for improved EMI shielding
TECHNICAL SPECIFICATIONS
BlueStorm V.2
A powerful dual-wireless research platform combining ESP32 and NRF24L01 technologies for advanced Bluetooth and WiFi analysis.

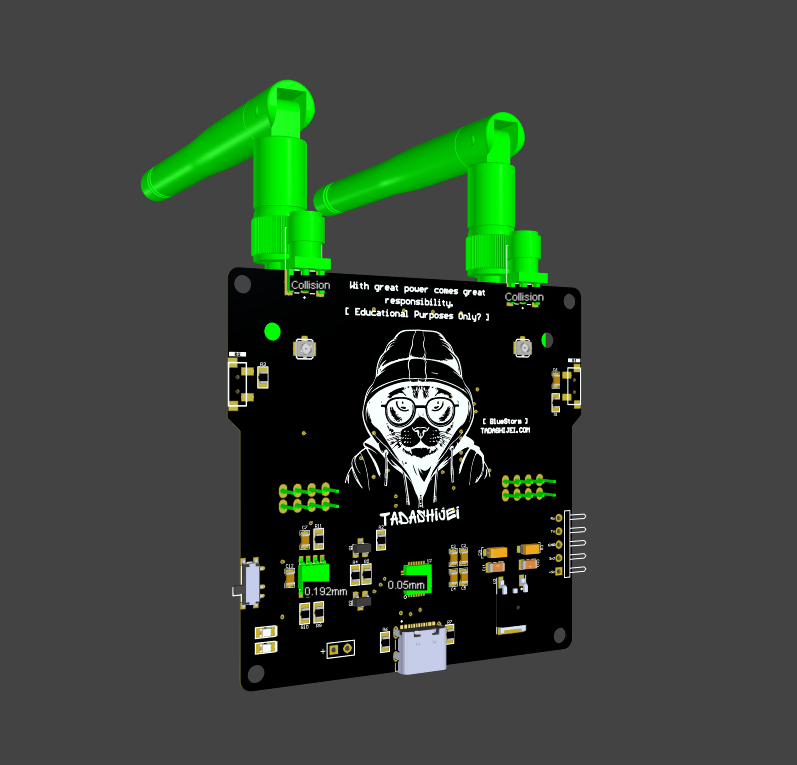

Top View
Dual antenna system with ESP32 and NRF24L01 modules
Security Testing
Analyze the resilience of BLE and Bluetooth devices against various attack vectors. Perfect for penetration testing and security research.
Protocol Research
Study wireless protocol behavior under various conditions. Ideal for academic research and development of new communication methods.
Educational Use
Perfect for demonstrations and hands-on learning about wireless security, protocol analysis, and network vulnerabilities.
For educational and research purposes only. Users are responsible for complying with all applicable laws and regulations.
BLUESTORM DEVICE
SPECIFICATIONS
- DUAL WIRELESS: ESP32-WROOM-32U + NRF24L01 2.4GHZ
- BLUETOOTH V4.2 + EDR (CLASS 1, 2, AND 3)
- WIFI 802.11 B/G/N SUPPORT
- DUAL SMA ANTENNA CONNECTORS
- USB TYPE-C WITH CP2102 UART BRIDGE
- TP4056 BATTERY MANAGEMENT SYSTEM
- RGB LED WS2812B + 6 STATUS LEDS
- 3 PROGRAMMABLE BUTTONS + SLIDE SWITCH
- 3.3V LF33 VOLTAGE REGULATION
- PROFESSIONAL-GRADE PCB DESIGN
INCLUDES
- BLUESTORM DEVICE
- DUAL ANTENNA SYSTEM
- USB TYPE-C CABLE
- QUICK START GUIDE
- ACCESS TO ONLINE DOCUMENTATION AND FORUMS
- FIRMWARE UPDATE ACCESS
- TECHNICAL SUPPORT ACCESS
KEY FEATURES
- ADVANCED BLUETOOTH PACKET SNIFFING AND INJECTION
- REAL-TIME SPECTRUM ANALYSIS
- CUSTOMIZABLE FIRMWARE FOR SPECIALIZED RESEARCH
- INTEGRATED WEB-BASED CONTROL INTERFACE
- EXTENSIVE API FOR AUTOMATION AND INTEGRATION
- REGULAR FIRMWARE UPDATES AND SECURITY PATCHES
